Sold out

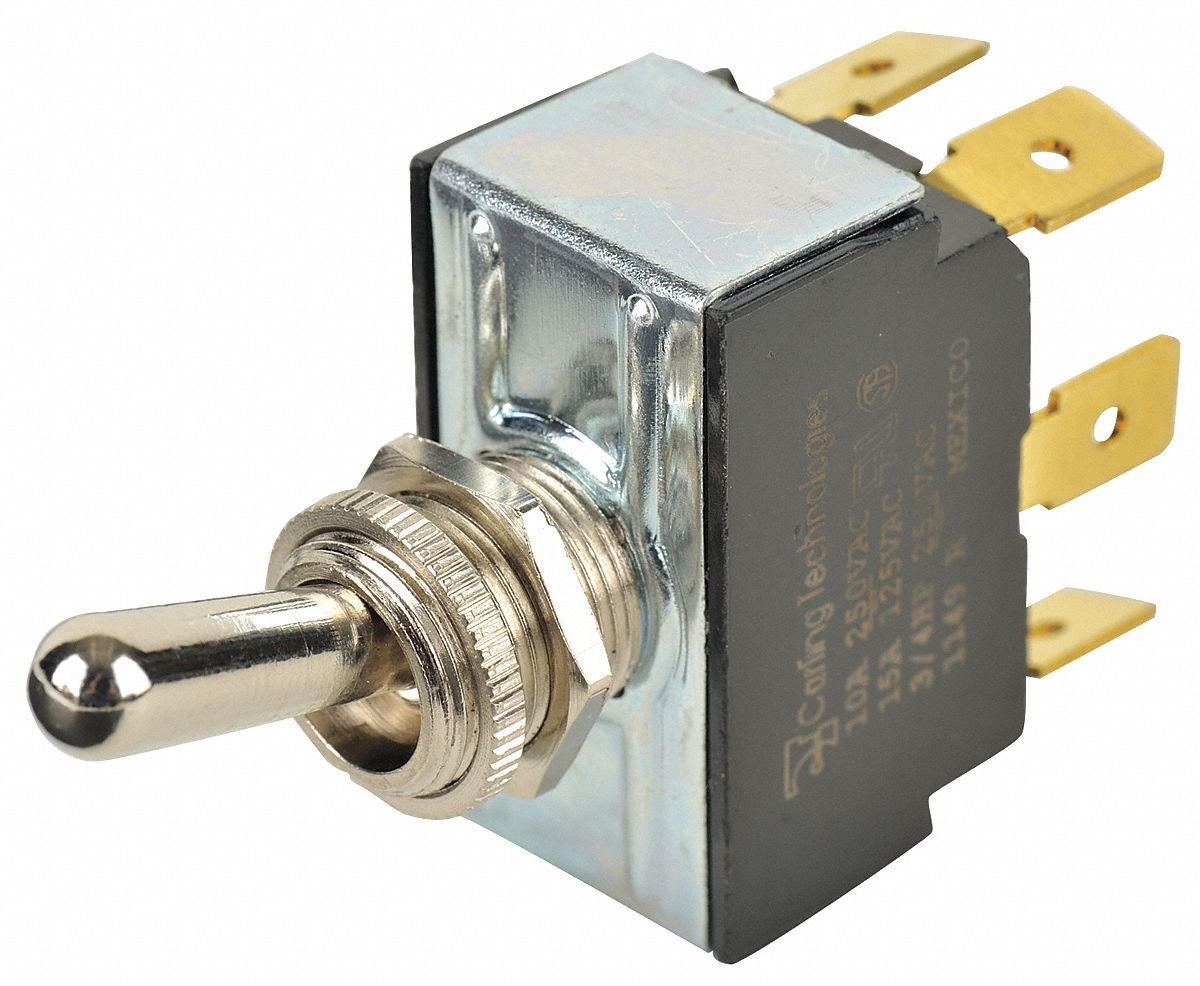

Carling Technologies Toggle Switch, Number of Connections: 6, Switch Function: On/Off/On - 2GM51-73
$17.50
Unit price
/
Unavailable
Carling Technologies Toggle Switch, Number of Connections: 6, Switch Function: On/Off/On - 2GM51-73 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
View our shipping times on our Shipping and Returns page
Description
Description
The CARLING TECHNOLOGIES toggle switch is designed for use in electric motors, appliances, power tools, light fixtures, and instruments. C-UL Recognized. CSA Certified.
Item: Toggle Switch
Contact Form: DPDT
Number of Connections: 6
Switch Function: On/Off/On
AC Contact Rating: 15A @ 125VAC, 10A @ 250VAC
HP: 3/4
Terminals: Quick Connect
Mounting Hole: 0.50" dia.
Actuator Style: Bat
Actuator Length: 0.68"
Stem Length: 0.465"
Stem Dia. and Thread Size: 15/32-32UNS-2A x 0.5" Dia.
Operating Temp. Range: 32 Degrees to 185 Degrees F
Item: Toggle Switch
Contact Form: DPDT
Number of Connections: 6
Switch Function: On/Off/On
AC Contact Rating: 15A @ 125VAC, 10A @ 250VAC
HP: 3/4
Terminals: Quick Connect
Mounting Hole: 0.50" dia.
Actuator Style: Bat
Actuator Length: 0.68"
Stem Length: 0.465"
Stem Dia. and Thread Size: 15/32-32UNS-2A x 0.5" Dia.
Operating Temp. Range: 32 Degrees to 185 Degrees F
- Item:-Toggle Switch
- Contact Form:-DPDT
- Number of Connections:-6
- Switch Function:-On/Off/On
- Terminals:-1/4" Tab
