Subminiature Snap Action Switch Overview

These subminiature basic switches offer a wide operating temperature range of -25 to +85°C, providing three load switching capacities to choose from in a compact design. With long service life, high vibration and shock resistance, and easy installation via solder terminals, these switches are a reliable choice for various applications.

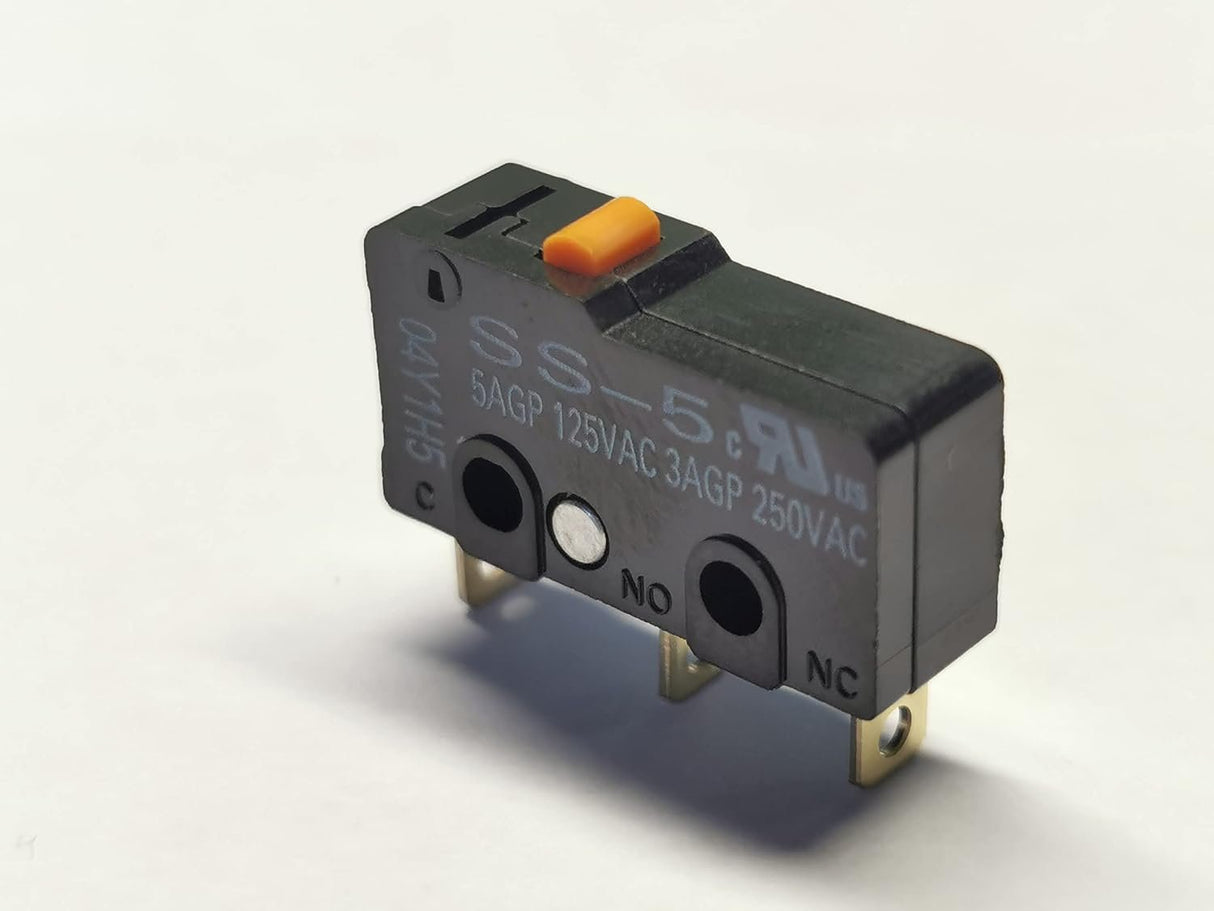

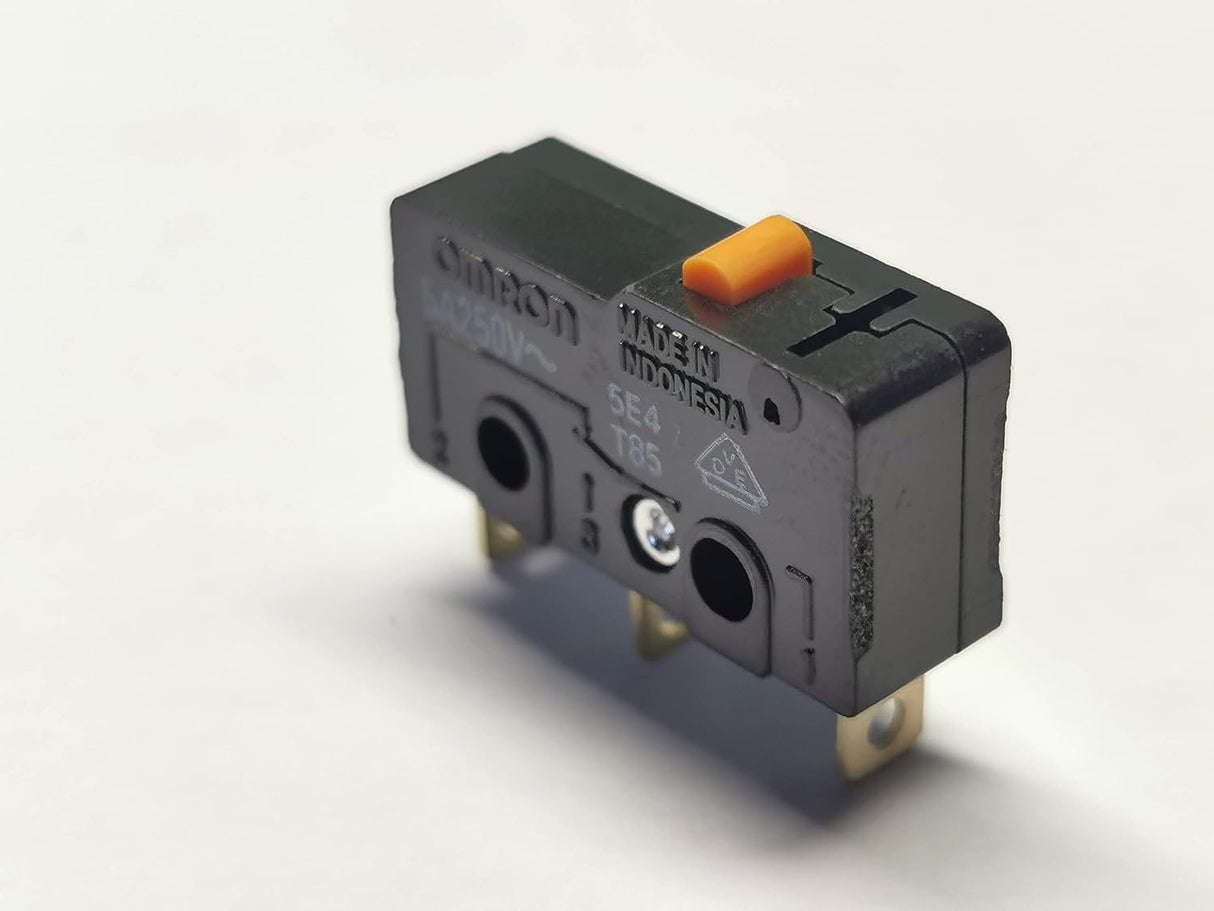

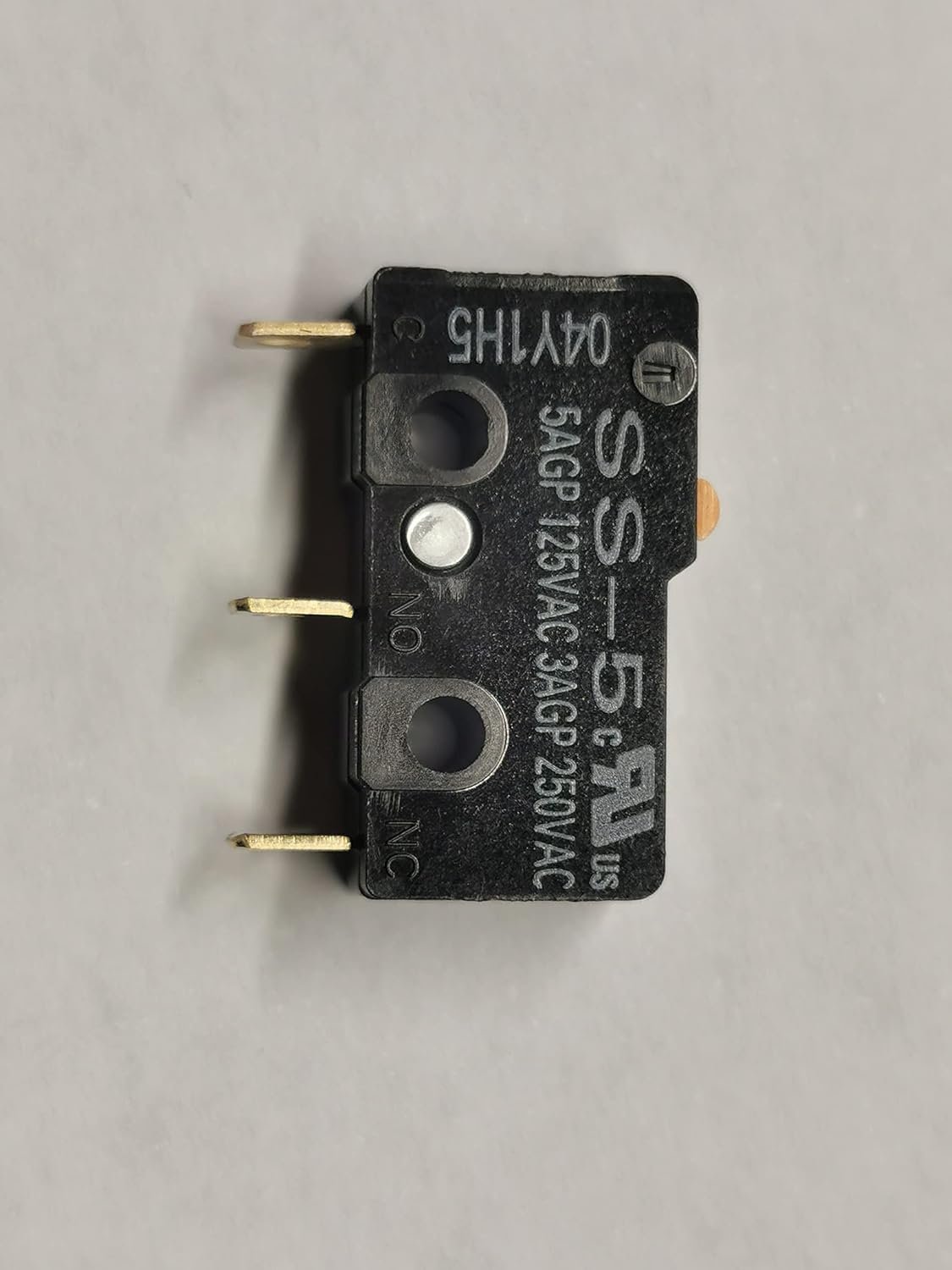

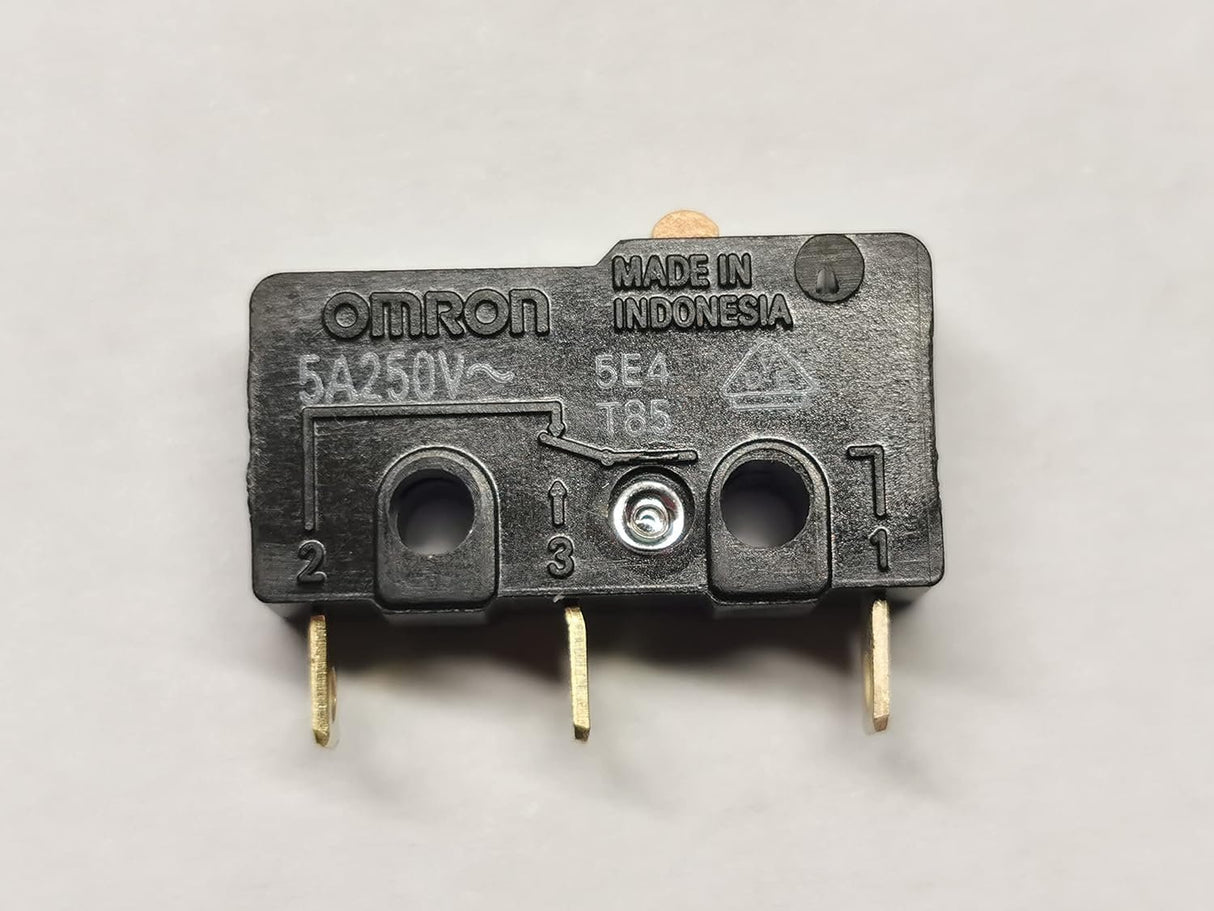

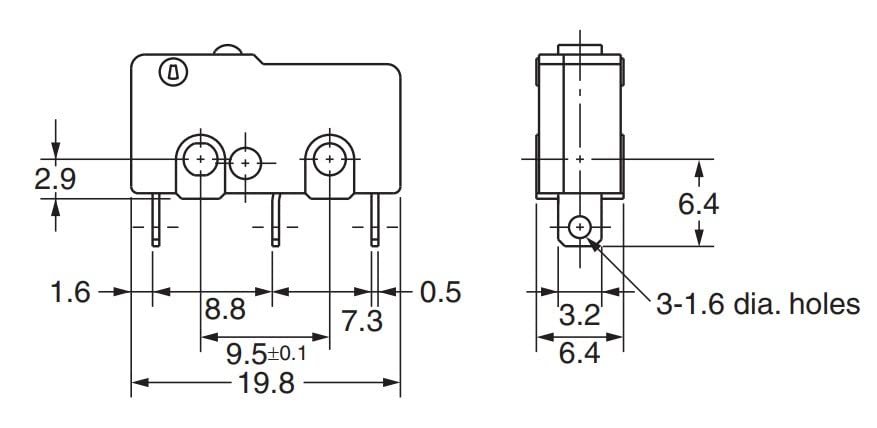

• Body Size: 19.8 x 10.2 x 6.4 mm (0.78" x 0.40" x 0.25")


• Heavy-Duty Load: 10.1 A @ 125 VAC/250 VAC, 10.1 A @ 8 VDC/14 VDC, 4 A @ 30 VDC; 20 A max. inrush current NC, 15 A max. inrush current NO


• Standard Load: 5 A @ 125 VAC, 3 A @ 250 VAC, 5 A @ 8 VDC/14 VDC, 4 A 30 VDC; 20 A max. inrush current NC, 10 A max. inrush current NO


• Microvoltage/Current Load: 0.1 A @ 125 VAC/ 30 VDC; 1 A max. inrush current

These economical snap action switches offer a minimum of 30 million operations, ensuring a long service life. They are free from overtravel restrictions, allowing for easy setting. With a wide switching capacity range from microvoltage/current loads (1 mA at 5 VDC) to high-capacity loads (10.1 A at 250 VAC), these switches are versatile. Additionally, standard operating force, low force, and super-low force models are available to suit different needs. All models are RoHS compliant.
