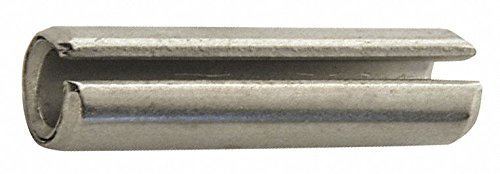

Driv-Lok, SLTP0780312CP, Spring Pin, Slot, 5/16x5/64 L, Pk100

' Spring Pin, Slotted, 420 SS, Passivated Finish, Overall Length 5/16 In, Nominal Dia 5/64 In, Actual Dia 0.083-0.086 In Min-Max, Chamfer Dia 0.075 In, Chamfer Length Min 0.008 In, Chamfer Length Max 0.032 In, Wall Thickness 0.018 In, Fits Hole Dia 0.078-0.081 In Min-Max, Length Tolerance +/-0.015 In, Double Shear Strength 800 lb, Rockwell Hardness RC43-52, Meets ANSI/ASME B18.8.2, Package 100 '

• Price For: Each Meets: ANSI/ASME B18.8.2 Rockwell Hardness: RC43-52 Item: Spring Pin Type: Slotted Material: 420 Stainless Steel Chamfer Length (Max.): 0.032" Finish: Passivated Chamfer Length (Min.): 0.008" Chamfer Diameter: 0.075" Nominal Diameter: 5/64" Wall Thickness: 0.018" Fits Hole Dia. (Min.-Max.): 0.078-0.081" Actual Dia. (Min.-Max): 0.083-0.086"
• Length Tolerance: +/-0.015" Double Shear Strength (Lbs.): 800 Overall Length: 5/16" Country of Origin (subject to change): United States
